SEW (Standard Electric Works Co., LTD) / 2706 IM_Audio Impedance Testers

기기명 (Instrument) :  Audio Impedance Testers

제작회사 (Manufacturer) :  SEW (Standard Electric Works Co., LTD)

형식 (Model) :  2706 IM

세부내용 (Description) :

FEATURES
 -. True measurement of speaker systems actual impedance at 1kHz.
 -. Three test ranges (20Ω / 200Ω / 2000Ω) allow testing of home
    theater and commercial sound systems.
 -. Measures transformer impedances.
 -. Battery operated.
 -. Low battery indication.
 -. Data hold function.
 -. Timer function for continuous hands free operation.
 -. The timer can last about 3-5 minutes when users press.
 -. TEST ON/OFF button.

SPECIFICATIONS

Measuring ranges	0-20Ω / 0-200Ω / 0-2000Ω
Test frequency	1kHz
Accuracy	20Ω : ± 2%rdg±2dgt or ± 0.1Ω,   which is greater   200Ω / 2000Ω : ± 2%rdg±2dgt
Low battery   indiction	“   “ Symbol appears on the display
Data hold indiction	“   “ Symbol appears on the display
Display	LCD 3½ digit (2000 counts)
Dimensions	205(L) × 90(W) × 55(D)mm
Weight   (battery included)	Approx. 530g
Power source	1.5V (AA) × 6
Safety standard	EN 61010-1 CAT III 300V   EN 61326-1

첨부 (Attach)

   파일내용 (The content of file) :

     - Datasheet (데이터시트) :

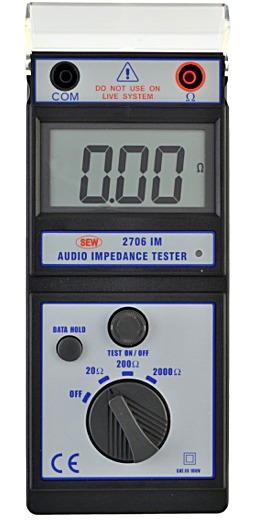

   사진 (Picture)  :

SEW (Standard Electric Works Co., LTD) / 2706 IM
