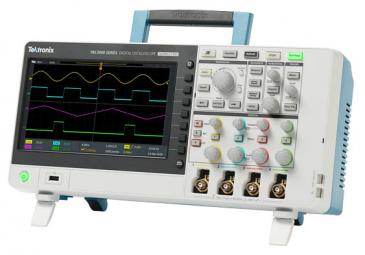

기기명 (Instrument) : 디지털 스토리지 오실로스코프 (Digital Storage Oscilloscope)
제작회사 (Manufacturer) : Tektronix
형식 (Model) : TBS2000 series ( TBS2072 / TBS2102 / TBS2074 / TBS2104 )
세부내용 (Description) :
Digital Storage Oscilloscope
This TBS2000 series oscilloscope user manual explains how to operate the oscilloscope and includes installation procedures. It also provides information about features, functions, and applications.
With a 9-inch WVGA display, 20 million point record length and 1 GS/s sample rate, TBS2000 Series Oscilloscopes capture and display significantly more signal to help you evaluate designs faster.
Easily and confidently analyze your signals with new on-waveform cursor readouts and 32 automated measurements, each with informative tips to help you quickly choose the right one. The TekVPI® probe interface works with traditional BNC connections, but also enables wide application coverage with the latest active voltage probes and current probes.
Key performance specifications
-. 2 and 4 analog channel models
-. 100 and 70 MHz bandwidth models
-. Up to 1 GS/s sampling rate
-. 20 M record length on all channels
-. 5 year warranty
Key features
-. 9-inch WVGA color display
-. 15 horizontal grids show 50% more signal
-. TekVPI probe interface supports active, differential, and current probes with automatic scaling and units
-. 32 automated measurements, and FFT function for thorough waveform analysis
-. HelpEverywhere provides helpful on-screen tips
-. Built-in Scope Intro handbook provides operating instructions and oscilloscope fundamentals
-. 2-channel models are highly-portable at 2.62 kg (5.8 lbs)
Connectivity
-. USB 2.0 host port on the front panel for quick and easy data storage
-. Wi-Fi interface provides wireless communications capability 1 support
-. USB 2.0 device port on rear panel for easy connection to a PC
-. LXI compliant 10/100BASE-T Ethernet port for remote control over LAN
-. 1A Wi-Fi adapter is available in some countries from Tektronix distributors as an accessory, model TEK-USB-WIFI. See Ordering Information for details.
Education
-. Courseware function presents lab exercise guidance on the display
-. Fully compatible with TekSmartLab lab management software for education
