ED Corporation / SG-1150_RF Signal Generator

기기명 (Instrument) :  RF Signal Generator

제작회사 (Manufacturer) :  ED Corporation

형식 (Model) :  SG-1150

세부내용 (Description) :

• RF 100 kHz ~ 450 MHz (7 Range)
• Output of Internal modulation frequency (1 kHz)
• Digital Counter for frequency
• Good for AM & SSB experiments

Frequency Range	100 kHz ~ 150 MHz (in 6 ranges) 150 MHz ~ 450 MHz (3rd Harmonics)
Accuracy (Freq.)	0.01 % ± 1 digit (after 30 minutes Warm-up)
RF Output	0.1 Vrms (at 100 kHz) Approx. High / Low Switch & Continuous Variable
Modulation	Internal: 1 kHz, External: 50 Hz ~ 20 kHz (Less than 1 V)
AF Output	1 kHz, 1 Vrms Approx.
RF Frequency Display	4 digits kHz & MHz Indication
Operating Conditions	Temperature: 5 ℃ ~ 45 ℃, Humidity: 10 ~ 85 % R.H.
Input Power	AC 220 V, 50/ 60 Hz
Dimensions	255(W) × 100(H) × 280(D) (mm)
Weight	2.1 kg (Approx.)



첨부 (Attach)

   파일내용 (The content of file) :

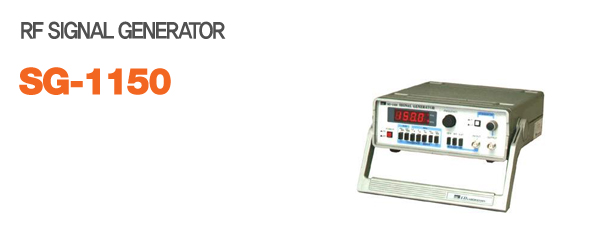

   사진 (Picture)  :
