기기명 (Instrument) : Line Seiki / TM-5 Series_hand-held Non-Contact/Contact Tachometer
제작회사 (Manufacturer) : LINE SEIKI
형식 (Model) : TM-5 Series
TM-5000/ TM-5010/ TM-5010E/ TM-5013/ TM-4015
세부내용 (Description) :
Product Type: Hand-held
The TM-5000/5010 series is a hand-held Non-Contact/Contact Tachometer. It measures rotational and linear speeds of upto 99,999.9 rpm and measured value can be converted instantly to different units of measurements (RPM, RPS, m/min, cm/s, inch/s, ft/min and yd/min). Up to 8 measured values can be stored in internal memory. Measuring in hard to reach places is possible with the use of the Remote Sensor. Portable and very handy, no special skills required to use. Available in Kit type which includes everything needed to get you started.
CE and RoHS compliant.
Technical Specification
Model |
TM-5000 |
TM-5010 |
Measuring Range |
6.0 - 99999.9r/min |
|
Resolution |
0.1r/min |
0.1rpm, fpm, others 0.01 |
Accuracy |
±0.01% ±1digit r/min, m/min |
|
Sampling Time . |
1.0 - 10.0seconds |
|
Display |
Display : 6digits, 7segment LCD |
|
Display unit : r/min |
Display unit : r/min, r/s, m/min, cm/s |
|
Auto Power-off . |
After 3 mins. from last measurement or key opration. |
|
Data Hold Time |
Measurement data : until the next data is defined. |
|
- |
Memory data : same as battery life |
|
Measuring Method |
Non-contact measurement using the main unit or with remote sensor |
|
Measuring Distance |
50 - 300mm (using reflective tape) |
|
Power Supply |
4pcs. of AAA alkaline battery (continuous measurement of 20hrs.) |
|
Operating Temp. |
5 - 40°C(Non-freezing) |
|
Storage Temp. |
-10 - +60°C(Non-freezing) |
|
StorageHumidity |
35 - 85%RH(Non-condensing) |
|
Dimension/ |
122(H) x 58(46)(W) x 28(D)mm / approx. 130g (including batteries) |
* These measuring units are only available in TM-5010E model.
첨부 (Attach)
파일내용 (The content of file) :
-. Instruction Manual (사용자 설명서) :
-. Catalog (카달로그) :

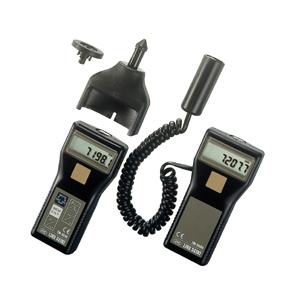

사진 (Picture) :
